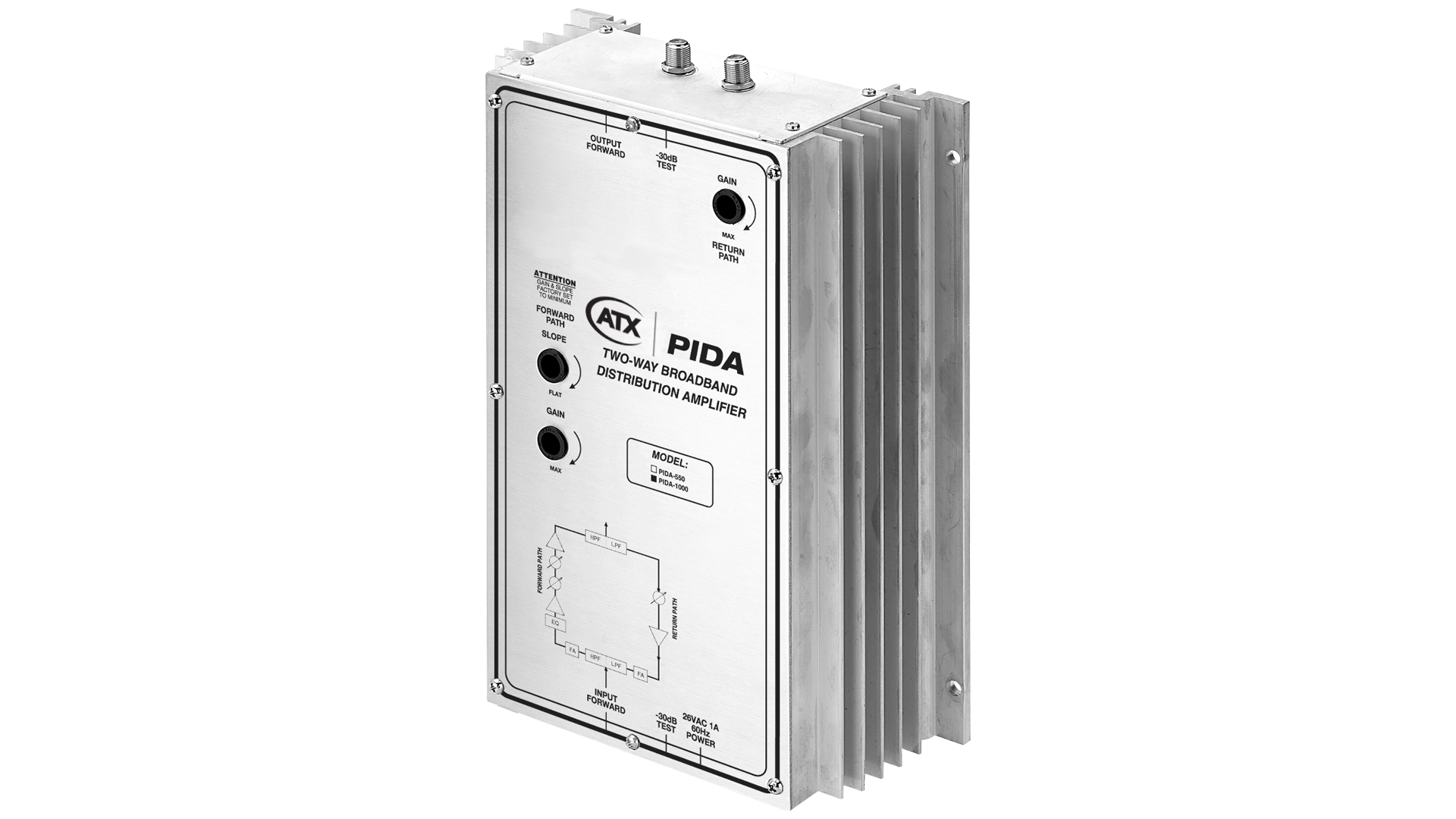

PIDA-1000

Broadband Bi-directional Push-Pull Distribution Amplifiers

  • Features
  • Specs & Order Info
  • Other Documents
  • 54~1000 MHz (CATV 2~158) and 5~42 MHz reverse bandwidth (CATV T7~T11)
  • 30 dB forward path gain and 20 dB or passive reverse path gain (switchable) for maximum flexibility
  • ±0.75 dB flatness across band provides low distortion and excellent frequency response
  • Employs dual state-of-the art push-pull hybrid technology for very low distortion, high input and output capability
  • Optional plug-in equalizers and attenuators enable unity gain and slope system balancing for minimum distortion
  • -30 dB input and output test points enable simplified setup and performance monitoring without service interruption
  • Built-in lightning and line-voltage surge protection protects the unit from damage
  • External UL approved power supply

Specifications | Ordering Information

Specifications

Bandwidth 5~1000 MHz
Gain (FWD) 54~1000 MHz 30 dB
Gain (REV) 5~42 MHz 20 dB
Max. Output (158 ch.) 42 dBmV
Flatness 0.5 dB
Noise Figure (FWD) 5 dB
Noise Figure (REV) 4 dB
Composite Second Order(FWD) 60 dB
Composite Triple Beat (FWD) 58 dB
Input Test Point Loss 30 dB
Output Test Point Loss 30 dB
Power Input 27 VAC, 1.2A
Power Required 26W
Dimensions 11” (L) x 3.25” (D) x 7” (W)
Weight 6.2 lbs
Total # of Channels Input Level (dBmV) Output Level (dBmV)
12 23 53
24 20 50
36 19 49
48 17 47
72 16 46
96 14 44
144 13 43
158 12 42

Ordering Information

Ordering Information
PIDA-1000 1000 MHz Amplifier
PIDA-AT AT Value 6, 9, 12, 18 dB Attenuator
PIDA-EQ EQ Value 6, 9, 12, 18 dB Equalizer
PIDA-PS Power Supply
PIDA-PS/220 Power Supply for 220

PIDA-1000 Data Sheet

This data sheet contains branding from Pico Digital, a recent ATX subsidiary.
