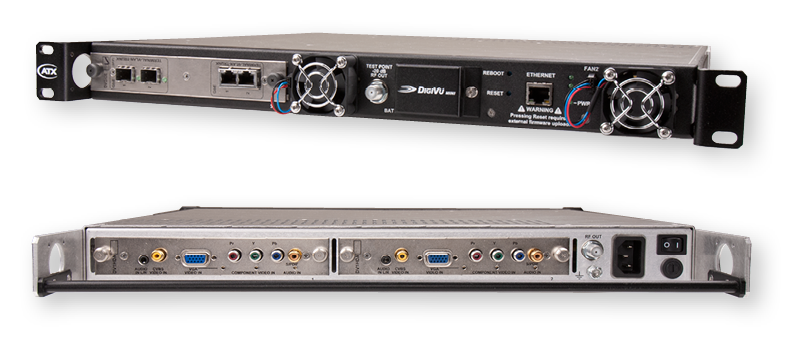

DigiVu Mini Multichannel Encoder – IP & RF Out

The DigiVu Mini MPEG-2/H.264 SD/HD encoder/multiplexer with IP output is a cost-effective solution for encoding locally generated or PEG programs and outputting them in IP into an IP video network. It is an ideal solution for insertion of locally generated channels into private IP video networks of university campuses, sports stadiums, hospitals, etc. It is also capable of simultaneously outputting the encoded programs over RF QAM.

Request Info How To Buy

Data Sheet: DigiVu Mini IP & RF Out

Data Sheet: HD Encoder Cards

Features

Scalable 1RU (19” rack mount) solution: support for encoding (and multiplexing) of up to 4 SD (or 2 HD) A/V programs
Supports 1- and 2-channel encoder cards for easy unit expansion to handle additional programs
Supports both HD and SD encoder cards within the same chassis
IP output card (copper/SFP optical)
Includes the following operational modes: IP output only, IP+QAM output simultaneously, and QAM output only
Externally accessible plug-in cards for ease of upgrade and maintenance
Optical transmitter module available for insertion into FTTX architectures
HTTP-based GUI allows for easy set-up and control using a standard web browser
Remote access and SNMP monitoring available via integrated RJ45 Ethernet interface

DigiVu Mini Multichannel Encoder – RF Out

DigiVu Multichannel Encoder – IP & RF Out

Specifications & Documentation

Data Sheet: DigiVu Mini Multichannel Encoder IP & RF Out (ANW0969)

Data Sheet: HD Encoder Cards (ANW0921)

Manual: DigiVu, DigiVu CD, DigiVu Mini Installation & Operation (ANW0986)

DigiVu Mini Encoder Software Downloads

End-of Sale & End-of-Life Notification – (DigiVu II Product Line)

Manual: DigiVu II/DigiVu II Micro Operation (ANW1051) (Discontinued)

Manual: DigiVu II 1RU Hardware Interface (ANW1080) (Discontinued)

Manual: DigiVu II 2RU Hardware Interface (ANW1138) (Discontinued)

Manual: DigiVu II Micro Hardware Interface (ANW1130) (Discontinued)

Video Loop Creation Tool

Specifications Ordering Information Documentation

DigiVu Mini – IP Output

BASE PLATFORM
CHASSIS OVERVIEW
DIMENSIONS	1.75”H x 19.0”W x 16.5”D (4.45H x 48.26W x 41.91D cm) 19” Rack Mount (1RU)
WEIGHT (Max)	10.0 lbs (4.5 kg)
EXPANSION CARD SLOTS	Three
ENCODED PROGRAMS	Up to 2 HD or 4 SD, Scalable (plug-in cards with one or two encoders per card)
POWER SUPPLY	IEC Connector/ 90-264 VAC, 50/60 Hz
POWER CONSUMPTION	43W
DEVICE MANAGEMENT	HTTP/SNMP Network Interface (RJ45)
OPERATING TEMPERATURE	0°C to +50°C (+32°F to +122°F)
HUMIDITY	0-95% (without condensation)
TS MULTIPLEXER
PACKET SIZE	188 Bytes
TS SUPPORT	QBA, AF
PROGRAM NUMBER & TS NUMBER	User Settable (Program #: 1-65535; TS ID: 1-65535)
PSI / SI / PSIP INFORMATION TABLE	PAT, PMT, SDT, NIT, MGT, CVCT
SETTABLE PIDs	PMT, PCR (0x0015-0x1FFE; dec. 21-8190)
GIGABIT ETHERNET SPECIFICATIONS
PHYSICAL
COPPER PORTS	2x RJ45
SFP PORTS	2x SFP Cage
POWER CONSUMPTION (with 4 Active Ports)	~ 4W
BIT RATES & STANDARDS
RJ45 PORTS	10/100/1000BASE-T and 10/100/1000BASE-TX
SFP PORTS	1000BASE-LX
IP OUTPUT CHARACTERISTICS
TRANSPORT LAYER	UDP, RTP
STREAMING PROTOCOL	Multicast, Unicast
NETWORK	DHCP, VLAN Tagging (IEEE 802.1Q)
ENCAPSULATION	1-7 TS Packets per Ethernet Frame
TRANSMISSION	SPTS, MPTS
NULL STUFFING	OFF, ON (User Settable Limit)

HD Encoder Cards

COMPONENT/HDMI
	DV1HDA		DV1HDMI
VIDEO INPUTS
CONNECTOR	3x RCA Female		1x HDMI Female (Type A)(1)
CHROMA FORMAT	YPbPr 4:2:2
RESOLUTIONS	480p_60 (59.94)
	576p_50
	720p_60 (59.94)
	720p_50
	1080i_60 (59.94)
	1080i_50
PC – VGA
CONNECTOR	DE-15 Female, 15-Pin, 3 Rows		n/a
CHROMA FORMAT	RGB 4:4:4		n/a
RESOLUTIONS	640 x 480, 60 Hz		n/a
	800 x 600, 60 Hz		n/a
	1280 x 720, 60 Hz		n/a
	1024 x 768, 60 Hz		n/a
	1280 x 1024, 60 Hz		n/a
	1366 x 768, 60 Hz		n/a
	1400 x 1050, 60 Hz		n/a
	1920 x 1080, 60 Hz		n/a
AUDIO INPUTS
ANALOG L/R
CONNECTOR	TRS 3.5 mm Female, 2x RCA Adapter Female
DIGITAL SPDI/F
CONNECTOR	1x RCA (Coaxial) Female		n/a
AUDIO STANDARD	IEC 61937:AC-3 (Pass Through)		n/a
MAX CHANNELS	6 (5.1) Pass Through		n/a
HDMI
AUDIO STANDARD	n/a		PCM
VIDEO PROCESSING
ENCODING	MPEG-2	H.264	MPEG-2	H.264
ENCODE LEVEL	MPEG-2 HD MP @ HL	High Profile Level 5	MPEG-2 HD MP @ HL	High Profile Level 5
CHROMA	4:2:0
BIT RATE	1-25 Mbps
COMPONENT/HDMI VIDEO RESOLUTIONS	480p_60 (59.94)
	576p_50
	720p_60 (59.94)
	720p_50
	1080i_60 (59.94)
	1080i_50
ENCODING	MPEG-2	H.264	MPEG-2	H.264
VGA RESOLUTIONS	640 x 480, 60 Hz		n/a
	800 x 600, 60 Hz		n/a
	1280 x 720, 60 Hz		n/a
	1024 x 768, 60 Hz		n/a
	1280 x 1024, 60 Hz		n/a
	1366 x 768, 60 Hz		n/a
	1400 x 1050, 60 Hz		n/a
	1920 x 1080, 60 Hz		n/a
VIDEO PID SETTING	Yes (0x0015-0x1FFE; dec. 21-8190)
VBI PROCESSING	Closed Captions (Line 21/EIA-608 captions) via Separate CVBS Connected Source
AUDIO PROCESSING
AUDIO ENCODER
ENCODE STANDARD	Dolby® Digital AC-3 ATSC A/52 (2.0)
SAMPLE RATE	48 kHz
BIT RATE	192, 256, 384 kbps
AUDIO PID SETTING	Yes (0x0015-0x1FFE; dec. 21-8190)
DIGITAL AUDIO PASS THROUGH
AC-3 (2.0/5.1) PASS THROUGH	Yes (S/PDIF)		n/a
PHYSICAL & ENVIRONMENTAL
DIMENSIONS	6.5”H x 0.75”W x 3.0”D (16.5H x 1.9W x 7.6D cm)		6.5”H x 0.75”W x 3.0”D (16.5H x 1.9W x 7.6D cm)
WEIGHT	0.33 lbs (0.15 kg)		0.35 lbs (0.16 kg)

NOTE:
(1)HDCP encrypted content is not supported.

Dolby is a registered trademark of Dolby Laboratories. Manufactured under license from Dolby Laboratories.

SD Encoder Cards

		DV1CE / DV1CEM	DV2CE / DV2CEM
VIDEO
INPUT		CVBS, NTSC / PAL(1)
INPUT INTERFACE		1x BNC, 75 Ω	2x BNC, 75 Ω
ENCODING FORMAT		MPEG-2, 4:2:0, MP@ML
ENCODING BIT RATE TYPE		CBR
VIDEO ADJUSTMENTS		Brightness, Contrast, Saturation
VIDEO PROCESSING		TBC
RESOLUTION	HORIZONTAL	720, 704, 544, 528, 480, 352
	VERTICAL	480, 576
FRAME RATE		29.97fps, 25fps(1)
VIDEO ENCODING BIT RATE		1-8 Mbps
GOP STRUCTURE		IBBP – Length 15
VIDEO PID SETTING		Yes (0x0015-0x1FFE; dec. 21-8190)
VBI PROCESSING		Closed Captions
AUDIO
INPUT		Analog, Unbalanced
INPUT INTERFACE		2x RCA (pair L/R)	4x RCA (2x pair L/R)
ENCODING FORMAT		Dolby Digital AC-3, MPEG-1 Layer II(1)
MODES		Stereo, Mono
SAMPLING RATE		48 kHz
ENCODING BIT RATES		192, 256, 384 kbps
AUDIO PID SETTING		Yes (0x0015-0x1FFE; dec. 21-8190)
PHYSICAL
DIMENSIONS		6.5”H x 0.75”W x 3.0”D (16.5H x 1.9W x 7.6D cm)
WEIGHT		0.33 lbs (0.15 kg)

NOTES:

(1) DV1CE and DV2CE provide NTSC/Dolby Digital AC-3 encoding (29.97fps); DV1CEM and DV2CEM provide PAL/MPEG-1 Layer II encoding (25fps).

Dolby is a registered trademark of Dolby Laboratories. Manufactured under license from Dolby Laboratories.

MPEG-2 / H.264 SD / HD
Compact Multichannel Encoder/Multiplexer (DigiVu Mini) – IP Output

Part Number	Description
*DGVU1RUIPS**	Compact Multichannel Digital IP Out Encoder with * MPEG-2 SD A/V Baseband Inputs ( * = Number of Inputs, ie. 1, 2, 3 or 4), NTSC/AC-3 Dolby®.
*DGVU1RUIPSM**	Compact Multichannel Digital IP Out Encoder with * MPEG-2 SD A/V Baseband Inputs ( * = Number of Inputs, ie. 1, 2, 3 or 4), PAL/MPEG-1 Layer II.
*DGVU1RUIPH**	Compact Multichannel Digital IP Out Encoder with * MPEG-2/H.264 SD/HD DV1HDA Cards Installed ( * = Number of Cards, ie. 1 or 2).
DGVU1RUBASEIP	DigiVu Mini IP Out 1RU Base Unit/chassis (no encoder cards installed).
DV1CE	Separate 1-channel MPEG-2 SD Encoder Plug-in Card (1 Video + 2 Audio Inputs), NTSC/AC-3 Dolby.
DV1CEM	Separate 1-channel MPEG-2 SD Encoder Plug-in Card (1 Video + 2 Audio Inputs), PAL/MPEG-1 Layer II.
DV2CE	Separate 2-channel MPEG-2 SD Encoder Plug-in Card (2 Video + 4 Audio Inputs), NTSC/AC-3 Dolby.
DV2CEM	Separate 2-channel MPEG-2 SD Encoder Plug-in Card (2 Video + 4 Audio Inputs), PAL/MPEG-1 Layer II.
DV1HDA	Separate 1-channel MPEG-2/H.264 SD/HD Encoder Plug-in Card (Component/VGA).
DV1HDMI	1-channel HDMI™ Encoder Plug-in Card
