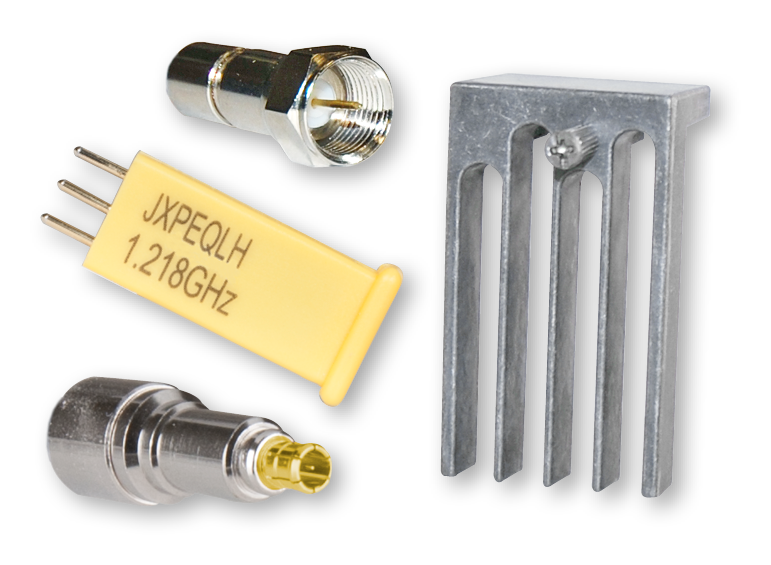

Pads / EQs / Connectors / Accessories

A combination of MCX and F connectors for miniature coaxial cable enables users to easily interface between the MCX-based MAXNET II platform and legacy F equipment. MAXNET II’s optimized RF performance, non-blind entry compression MCX and F connectors and terminators allow for easy field installation.

Other MAXNET II accessories include connector installation tools, MCX to F adaptors, locking header blocks, plug-in pads and EQs (along with an insertion/extraction tool), inline MCX pads, mini cable and fiber installation/extraction tools, and replacement fans.

Request Info How to Buy
  • Pads / EQs / Connectors / Accessories
Data Sheet: MAXNET II Connectors/Tools, Terminators & Optical Attenuators
Data Sheet: MAXNET II Accessories
MAXNET II Video of Cable Preparation for RF Applications

Features

  • DOCSIS® 3.1 and CCAP™ compliant
  • Compression connectors feature non-blind entry to allow for easy field installation and reassures installers that a solid connection is made
  • Crimp connector for RG59 cable allows direct connection to MCX connectors on ATX MAXNET II gear and is ideal for long runs between equipment or the replacement of legacy F connector gear with high density MAXNET II gear without routing new cable
  • 75 ohm terminators offer optimized RF performance on unused module ports
  • MCX to F and BNC adapters accommodate the transition from an MCX connector environment to a legacy F or BNC connector environment
  • Locking header blocks are easily installed onto rear of modules in order to lock connectors in place and increase reliability
  • Plug-in pad and EQs allow for RF signal adjustments at various locations in the network and are available from 0-20 dB in 1 dB increments, 16-20 dB recommended for return band only – now offering higher value pads above 20 dB for return path applications only
  • High quality, compact, gold-plated inline MCX pads with MCX female to MCX male connections are available from 1-10 dB in 1 dB increments, as well as 12, 14, 16, 18 and 20 dB

Related Products

Passive Modules

Active Amplifiers & RF Switches

Ultra-Dense RF & Optical Active Modules

Non-Blind Entry

IL < 0.1 dB, 5-1220 MHz
RL > 28 dB, 5-1220 MHz(1)



Crimp

IL < 0.1 dB, 5-1220 MHz
RL > 28 dB, 5-1220 MHz



Terminators

RL > 28 dB, 5-1220 MHz



MCX to F & BNC Adapter


IL < 0.1 dB, 5-1220 MHz
RL > 28 dB, 5-1220 MHz



Inline MCX Pads

IL < 0.5 dB, 5-1220 MHz
RL > 20 dB, 5-1220 MHz



Plug-in Pad

PART NUMBER

PAD
VALUES

FREQUENCY
RANGE

IMPEDANCE

RETURN
LOSS

TILT

FLATNESS

COLOR

MP-0PAD

0 dB

5-1218 MHz

75 Ω

≥ 20 dB

N/A

N/A

Blue

MP-*PAD

1-20 dB

5-1218 MHz

75 Ω

≥ 20 dB

≤ 0.5 dB

+/- 0.2 dB

Blue

* = dB Value 23, 24, 25, 26, 27, 28, 29, 30 or 34

5-250 MHz

75 Ω

≥ 20 dB

≤ 0.5 dB

+/- 0.2 dB

Blue

NOTE:

Temperature -20ºC to +60ºC (-4ºF to +140ºF), power handling min. 70 dBmV.

Plug-in 1 GHz EQ

PART NUMBER

EQ
VALUES

SLOPE
1000/45 MHz

INSERTION
LOSS

EQ
TOLERANCE

RETURN
LOSS

IMPEDANCE

COLOR

MP1.5EQ

1.5 dB

1.4 dB

≤ 1 dB

+/- 0.5 dB

≥ 18 dB

75 Ω

Blue

MP3EQ

3 dB

3.2 dB

≤ 1 dB

+/- 0.5 dB

≥ 18 dB

75 Ω

Blue

MP4.5EQ

4.5 dB

3.8 dB

≤ 1 dB

+/- 0.5 dB

≥ 18 dB

75 Ω

Blue

MP6EQ

6 dB

5.1 dB

≤ 1 dB

+/- 0.5 dB

≥ 18 dB

75 Ω

Blue

MP7.5EQ

7.5 dB

6.2 dB

≤ 1 dB

+/- 0.5 dB

≥ 18 dB

75 Ω

Blue

MP9EQ

9 dB

7.1 dB

≤ 1 dB

+/- 0.5 dB

≥ 18 dB

75 Ω

Blue

MP10.5EQ

10.5 dB

8.7 dB

≤ 1 dB

+/- 0.5 dB

≥ 18 dB

75 Ω

Blue

Plug-in 85 MHz EQ

FREQUENCY

MPEQL85-2

MPEQL85-4

MPEQL85-6

MPEQL85-8

MPEQL85-10

MPEQL85-13

INSERTION LOSS

5 MHz

2.5

4.5

6.5

8.5

10.5

13.5

15 MHz

2.3

4

5.8

7.5

9.3

11.9

40 MHz

1.6

2.8

3.9

5

6.1

7.8

Fmax = 85

0.5

0.5

0.5

0.5

0.5

0.5

LINEARITY*

5 to Fmax

0.3 dB

0.3 dB

0.3 dB

0.3 dB

0.3 dB

0.3 dB

RETURN LOSS

5 to Fmax

18 dB

18 dB

18 dB

18 dB

18 dB

18 dB

NOTE:

* Maximum deviation from a linear trend line between typical loss at Fmin & Fmax

Plug-in 204 MHz EQ

FREQUENCY

MPEQL204-1

MPEQL204-2

MPEQL204-3

MPEQL204-4

INSERTION LOSS

5 MHz

1.5

2.5

3.5

4.5

Fmax = 204

0.5

0.5

0.5

0.5

LINEARITY*

5 to Fmax

0.3 dB

0.3 dB

0.3 dB

0.3 dB

RETURN LOSS

5 to Fmax

18 dB

18 dB

18 dB

18 dB

NOTE:

* Maximum deviation from a linear trend line between typical loss at Fmin & Fmax

Plug-in 1.218 GHz EQ

PART NUMBER

EQ
VALUES

SLOPE
1218/45 MHz

INSERTION
LOSS

EQ
TOLERANCE

RETURN
LOSS

IMPEDANCE

COLOR

MP1.5EQLH

1.5 dB

.5 dB

≤ 1 dB

+/- 0.3 dB

≥ 18 dB

75 Ω

Yellow

MP3EQLH

3 dB

2 dB

≤ 1 dB

+/- 0.3 dB

≥ 18 dB

75 Ω

Yellow

MP4.5EQLH

4.5 dB

3.5 dB

≤ 1 dB

+/- 0.3 dB

≥ 18 dB

75 Ω

Yellow

MP6EQLH

6 dB

5 dB

≤ 1 dB

+/- 0.3 dB

≥ 18 dB

75 Ω

Yellow

MP7.5EQLH

7.5 dB

6.5 dB

≤ 1 dB

+/- 0.3 dB

≥ 18 dB

75 Ω

Yellow

MP9EQLH

9 dB

8 dB

≤ 1 dB

+/- 0.3 dB

≥ 18 dB

75 Ω

Yellow

MP10.5EQLH

10.5 dB

9.5 dB

≤ 1 dB

+/- 0.3 dB

≥ 18 dB

75 Ω

Yellow

NOTE:

Temperature -20ºC to +60ºC (-4ºF to +140ºF), power handling min. 70 dBmV.

Non-blind Entry Compression

Part Number Description
MPMCX-C Non-blind MCX Compression Connector – Mini Dual/Tri Coaxial
MPMCX-CQ Non-blind MCX Compression Connector – Mini Quad Coaxial
MPF-C Non-blind F Compression Connector – Mini Dual/Tri Coaxial
MPF-CQ Non-blind F Compression Connector – Mini Quad Coaxial



Connector Installation Tools

Part Number Description
MPNBCT Compression Tool for MPMCX-C / MPMCX-CQ & MPF-C / MPF-CQ Connectors
MPCPTH Mini Cable Preparation Tool with Handle
MPCPT Mini Cable Preparation Tool Replacement Tip
MPCPT-7691 Mini Coaxial Stripper .25”/.25” for ATX Mini Coaxial Quad Shield Connectors
MPRBC-7691 Replacement Blade Cartridge for MPCPT-7691
MPCPT-7538 Mini Coaxial Stripper .25”/.25” for ATX Mini Coaxial Dual/Tri Shield Connectors
MPRBC-7538 Replacement Blade Cartridge for MPCPT-7538



Connectorization Kit

Part Number Description
MPCONKIT Mini Cable Connectorization Kit with Tools & Connectors (30pcs ea of 4 types)
MPCONKIT-1 Mini Cable Tool Kit
MPCONKIT-CQ Quad Shield Mini Cable Connectorization Kit (60pcs ea of 2 types)



Crimp

Part Number Description
MPMCX-HEC2 MCX Male Crimp Connector – Quad Shield (HEC2) RG59 Cable
MPCT-801F 0.350 Crimp Tool for MPMCX-HEC2 Connector



Terminators

Part Number Description
MP75T MCX 75 Ω Terminator
MNF-75T 75 Ω RFI Tight F Terminator



MCX to F & BNC Adapters

Part number Description
MPM-B Male MCX to Male BNC 13” Adapter Cable
MPM-F Male MCX to Male F 13” Adapter Cable
MPADP Female MCX to Female F Adapter
MPADPM Male MCX to Female F Adapter
MPADPMB Replacement MCX to F Adapter, Bulkhead Mount



Locking Header Blocks

Part Number Description
MPLHS Locking Header Block for Single-width Passives & Actives
MPLHS-59 Single width header block for use with MPMCX-HEC2 connectors.
MPLHD Locking Header Block for Dual-width Passives Only
MPMCX-EXT Extension piece for MPMCX-C and/or MPMCX-CQ when used with MPLHS-59. WARNING! to avoid potential disconnects, a MPMCX-EXT MUST be used when combining MPMCX-C and/or MPMCX-CQ connectors and a MPLHS-59 header block.



Plug-in 1.218 GHz EQ

Part Number Description
MP-*PAD Plug-in Pad, 1218 MHz (* = dB value, 0-20 dB) (must order in quantities of 10)
Return Path Pad, 5-250 MHz (* = dB value, 23,24,25,26,27,28,29,30or 34 dB) (must order in quantities of 10)
MP*EQ Plug-in EQ, 1000 MHz (* = dB value, 1.5-10.5 dB) (must order in quantities of 10)
MPEQL85-* Plug-in EQ, 85 MHz (* = dB value, 1-13 dB) (must order in quantities of 10)
MPEQL204-* Plug-in EQ, 204 MHz (* = dB value, 1-4 dB) (must order in quantities of 10)
MP*EQLH Plug-in EQ, 1218 MHz (* = dB value, 1.5-10.5 dB) (must order in quantities of 10)
MPPT Pad/EQ Insertion and Extraction Tool



Inline MCX Pads

Part Number Description
MP*PI Inline MCX Pads (attenuators) (* = 1 to 10, 12, 14, 16, 18, 20 dB)



Mini Cable and Fiber Installation & Extraction Tools

Part Number Description
MPCINT Fiber/MCX Connector Installation/Extraction Tool



Replacement Fans

Part Number Description
MPFANA Replacement Fan for MAXNET II Power Supplies, Amplifiers & Legacy Receivers
MPFANB Replacement Fan for MAXNET II Legacy Transmitters

Data Sheet: MAXNET II Connectors/Tools, Terminators & Optical Attenuators (ANW0636)

Data Sheet: MAXNET II Accessories (ANW0618)

MCX Mini Cable Compression Connector Installation Instructions MPMCX-C/MPMCX-CQ (ANW0750)

MCX Crimp Connector for RG59 HEC2 Cable Installation Instructions MPMCX-HEC2 (ANW0962)

F Mini Cable Compression Connector Installation Instructions MPF-C/MPF-CQ

BNC Mini Cable Compression Connector Installation Instructions MPB-C/MPB-CQ

MAXNET II Video of Cable Preparation for RF Applications

Manufacture Discontinued (MD) HFC

Manufacture Discontinue (MD) Notice – Various Access Network Products

Privacy settings

Decide which cookies you want to allow. You can change these settings at any time. However, this can result in some functions no longer being available. For information on deleting the cookies, please consult your browser’s help function. Learn more about the cookies we use.

With the slider, you can enable or disable different types of cookies:

This website will:

  • Remember which cookies group you accepted

This website won't:

  • Remember your login details
  • Essential: Remember your cookie permission setting
  • Essential: Allow session cookies
  • Essential: Gather information you input into a contact forms newsletter and other forms across all pages
  • Essential: Keep track of what you input in a shopping cart
  • Essential: Authenticate that you are logged into your user account
  • Essential: Remember language version you selected
  • Functionality: Remember social media settings
  • Functionality: Remember selected region and country
  • Analytics: Keep track of your visited pages and interaction taken
  • Analytics: Keep track about your location and region based on your IP number
  • Analytics: Keep track of the time spent on each page
  • Analytics: Increase the data quality of the statistics functions
  • Advertising: Tailor information and advertising to your interests based on e.g. the content you have visited before. (Currently we do not use targeting or targeting cookies.
  • Advertising: Gather personally identifiable information such as name and location

This website will:

  • Essential: Remember your cookie permission setting
  • Essential: Allow session cookies
  • Essential: Gather information you input into a contact forms, newsletter and other forms across all pages
  • Essential: Keep track of what you input in a shopping cart
  • Essential: Authenticate that you are logged into your user account
  • Essential: Remember language version you selected

This website won't:

  • Remember your login details
  • Functionality: Remember social media settings
  • Functionality: Remember selected region and country
  • Analytics: Keep track of your visited pages and interaction taken
  • Analytics: Keep track about your location and region based on your IP number
  • Analytics: Keep track of the time spent on each page
  • Analytics: Increase the data quality of the statistics functions
  • Advertising: Tailor information and advertising to your interests based on e.g. the content you have visited before. (Currently we do not use targeting or targeting cookies.
  • Advertising: Gather personally identifiable information such as name and location

This website will:

  • Essential: Remember your cookie permission setting
  • Essential: Allow session cookies
  • Essential: Gather information you input into a contact forms, newsletter and other forms across all pages
  • Essential: Keep track of what you input in a shopping cart
  • Essential: Authenticate that you are logged into your user account
  • Essential: Remember language version you selected
  • Functionality: Remember social media settings
  • Functionality: Remember selected region and country

This website won't:

  • Remember your login details
  • Analytics: Keep track of your visited pages and interaction taken
  • Analytics: Keep track about your location and region based on your IP number
  • Analytics: Keep track of the time spent on each page
  • Analytics: Increase the data quality of the statistics functions
  • Advertising: Tailor information and advertising to your interests based on e.g. the content you have visited before. (Currently we do not use targeting or targeting cookies.
  • Advertising: Gather personally identifiable information such as name and location

This website will:

  • Essential: Remember your cookie permission setting
  • Essential: Allow session cookies
  • Essential: Gather information you input into a contact forms, newsletter and other forms across all pages
  • Essential: Keep track of what you input in a shopping cart
  • Essential: Authenticate that you are logged into your user account
  • Essential: Remember language version you selected
  • Functionality: Remember social media settings
  • Functionality: Remember selected region and country
  • Analytics: Keep track of your visited pages and interaction taken
  • Analytics: Keep track about your location and region based on your IP number
  • Analytics: Keep track of the time spent on each page
  • Analytics: Increase the data quality of the statistics functions

This website won't:

  • Remember your login details
  • Advertising: Use information for tailored advertising with third parties
  • Advertising: Allow you to connect to social sites
  • Advertising: Identify device you are using
  • Advertising: Gather personally identifiable information such as name and location

This website will:

  • Essential: Remember your cookie permission setting
  • Essential: Allow session cookies
  • Essential: Gather information you input into a contact forms, newsletter and other forms across all pages
  • Essential: Keep track of what you input in a shopping cart
  • Essential: Authenticate that you are logged into your user account
  • Essential: Remember language version you selected
  • Functionality: Remember social media settings
  • Functionality: Remember selected region and country
  • Analytics: Keep track of your visited pages and interaction taken
  • Analytics: Keep track about your location and region based on your IP number
  • Analytics: Keep track of the time spent on each page
  • Analytics: Increase the data quality of the statistics functions
  • Advertising: Use information for tailored advertising with third parties
  • Advertising: Allow you to connect to social sitesl Advertising: Identify device you are using
  • Advertising: Gather personally identifiable information such as name and location

This website won't:

  • Remember your login details
Save & Close
