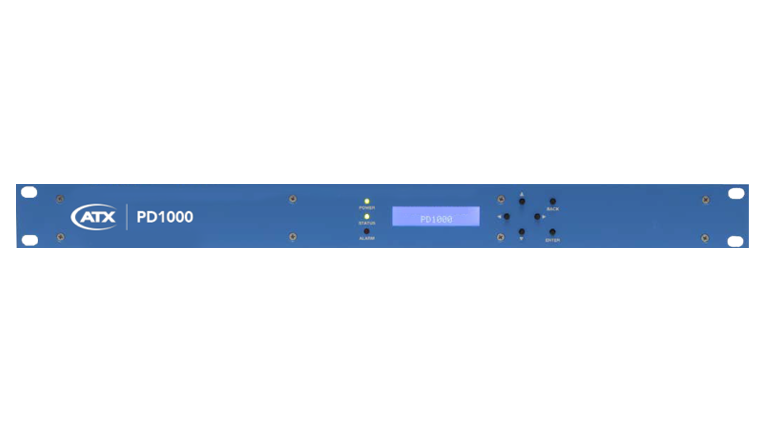

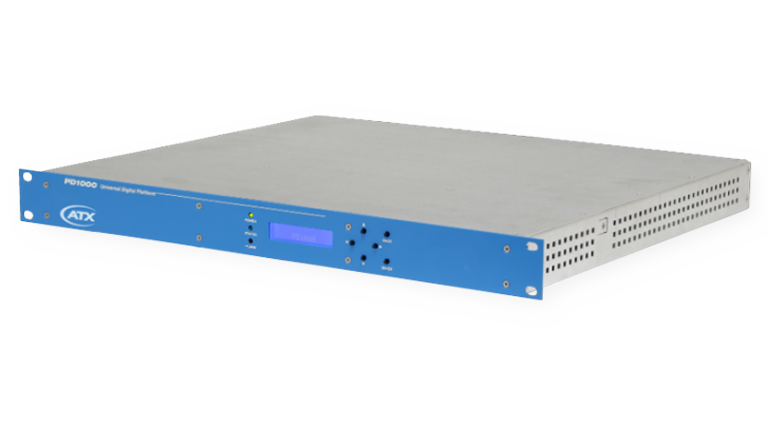

PD1000 High-Definition Dense Encoder Modulation System

The PD1000 is a professional-grade, modular HD encoding platform that encodes up to eight video sources and outputs them simultaneously over QAM RF and IP, all in a single rack unit. Its platform-based design means it grows with your deployment: encoder modules and output cards are field-swappable, so you can add capacity without replacing the chassis.

Request Info How To Buy
  • PD1000 High-Definition Dense Encoder Modulation System
  • PD1000 High-Definition Dense Encoder Modulation System
  • PD1000 High-Definition Dense Encoder Modulation System

Where it's used

The PD1000 fits any environment where you need to encode and distribute multiple local video sources across a network, whether that distribution runs over a QAM plant, an IP network, or both simultaneously.

Light Blue Blocks with Orange Icons

Commercial
residential & MDUs

Encode local property channels, building information feeds and lobby cameras and distribute them across the property QAM or IP network alongside the main channel lineup

Hospitality

Deliver property information channels, welcome content and local feeds to guest room televisions, encoded at the property and distributed over the existing RF or IP infrastructure

Academic & medical facilities

Encode and distribute multiple internal broadcast channels, lecture feeds, or information channels across campus or facility networks over QAM, IP, or ISDB-T depending on the deployment

CATV & broadcast

Encode local channels from multiple baseband or HD-SDI sources and inject them into the distribution plant with simultaneous QAM and IP output for mixed distribution environments

A modular platform, not a fixed product

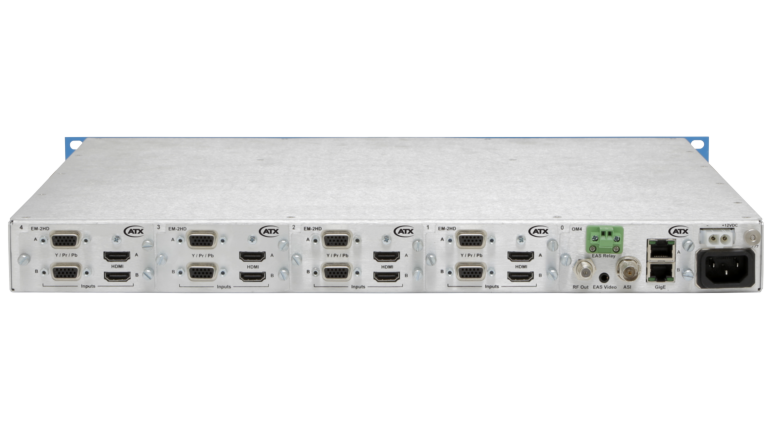

The PD1000 chassis accepts up to four dual-channel encoder modules and one output module, so you mix and match based on what your deployment needs. Start with two encoder modules and expand to eight channels in the field without replacing anything except the module. Two encoder types and three output types cover the range from component and HDMI sources to HD-SDI and from QAM to IP to ISDB-T.

Background Image Blocks

EM-2HD

Dual HD Encoder Module:
Accepts two channels of HDMI (clear), component YPbPr, or composite video (with closed caption). Auto-detects input type. Encodes independently in H.264 or MPEG-2 per channel. Optional Dolby Digital Stereo Creator audio encoding.

EM-HD-SDI

HD-SDI Encoder Module:
Accepts two channels of 3G/HD/SD-SDI via BNC. Encodes independently in H.264 or MPEG-2 per channel. Dolby Digital Stereo Creator audio included as standard. For broadcast and professional AV source environments.

OM4

QAM Output Module:
Multiplexes encoded channels and outputs up to four consecutive QAM RF channels simultaneously with IP (SPTS over UDP/RTP). Includes EAS video input and contact closure for emergency alert override. Supports Annex A/B/C, 64 and 256 QAM.

OM4

ISDB Output Modules:
For deployments in Japan (ISDB-T) or Latin America (ISDB-Tb). Outputs two ISDB-T or ISDB-Tb channels with simultaneous IP output option. Up to two OMI modules per chassis. Note: ISDB-T and ISDB-Tb cannot be configured simultaneously.

Key capabilities

Background Image Blocks

Up to 8 channels in 1RU

Four dual-channel encoder modules in a single 1RU chassis let you encode and dsitribute up to eight HD video sources simultaneously, with no change of resolution between input and output.

Simultaneous RF and IP output

QAM and IP output in parallel from the same chassis, useful for properties with mixed distribution infrastructure, or where you need IP monitoring of QAM-distributed content.

Virtual channel mapping

PSIP tables let you configure virtual channel numbers and names per QAM channel, so your locally encoded channels appear at the right logical channel position on property TVs.

EAS support

Integrated Emergency Alert System support on the OM4 module. When triggered, EAS video replaces all QAM RF output channels until the alert clears, without affecting IP output.

High RF output power

Up to 53 dBmV combined output level, designed to drive multiple receiving devices without an additional launch amplifier in most property deployments.

External DC backup power

A +12VDC external input on the PD1000 supports continued operation if the internal power supply fails, without interrupting the RF output while you arrange a repair.

Part of the Channel Insertion & Encoding family

The PD1000 sits alongside the DVIS™ II and PD100 in ATX’s channel insertion and encoding portfolio, covering multi-channel HD encoding for established QAM and IP distribution environments. If you need a compact edge encoder with IP-only output and local insertion, see the DVIS II. If you need single-channel IP encoding at the source, see the PD100.

Related insights

Transitioning Channel Insertion Services from QAM to IP

Learn how MSOs can increase customer loyalty and reduce operational costs by migrating this critical business service to IP.

Download eBook

ATX’s Next-Gen IP-Based Local Channel Insertion Solution Now Generally Available

DVIS II platform assists MSOs in preserving critical customer service as they transition commercial video to IP.

Read Press Release

Optimizing Channel Insertion for an IP World

Learn how local channel insertion is rising in importance, with IP and emerging tech helping providers cut costs, boost loyalty, and maximize value.

Watch Webinar

Local Channel Insertion

Explore ATX's innovative encoding and digital insertion solutions that simplify the addition of local content into commercial TV services.

Download Solution Brief

Cable Transition to IP Won’t Leave MDU Services Behind

ATX’s VP of Media Gateway Products, Linas Underys, discusses how MSOs can benefit by simplifying feed insertion to meet MDU needs in their move to IP.

Read Article

ATX Networks boosts MSO local channel insertion tech for bulk MDU, lobby feeds

Smart Buildings Technology discusses ATX’s new IP-based local channel insertion platform that enables adding local content into television lineups.

Read Article

ATX Networks Introduces Next-Generation Local Channel Insertion Solution

ATX debuts new IP-based local channel insertion platform at Cable-Tec Expo 2022 as a convenient and cost-efficient approach for MSOs converting to IP.

Read Press Release

Related Pages

DVIS II: Next-Gen Local Channel Insertion

PD100: HD IP Encoder

Specifications & Documentation

Data Sheet: PD1000 HD Dense Encoder Modulation System (ANW1273)

Manual: PD1000 HD Dense Encoder Modulation System Installation & Operation (R830001-2017-PD1000 Rev. D)

Audio/Video Inputs (Per EM-2HD Encoder Module)
HDMI Dual Type A v1.4 (Clear)
Component Dual YPrPb (YPrPB), (RCA)
Audio Dual Stereo (RCA)
Composite/Closed Caption Dual CVBS (RCA)
Audio/Video Inputs (Per EM-HD-SDI Encoder Module)
SDI Dual 3G/HD/SD (BNC)
Video Formats
In/Out Line Rates 1080p(1)/1080i/720p/480p/576i/480i
Frame Rates 25/29.97/30/50/59.94/60
Video/Audio Compression
Video Codecs HD and SD MPEG-2/H.264
Audio Codecs Layer II, Dolby® Digital Stereo Creator (One audio pair per video)
OAM/RF Output
Frequency Range 50 MHz to 1002 MHz
RF Channel Count 4
Modulation Modes QAM 64/256
QAM Type Annex A/B
MER > 40 dB
RF Level (pre-combined) > 60 dBmV
RF Level Adjustment Range (Combined) 38 dBmV to 53 dBmV
Spurious > 60 dBc
I/Q Amplitude Imbalance < 1 %
I/Q Phase Error < 1°
Frequency Accuracy ± 100 Hertz
Phase Noise 100 dBc @ 10 Khz offset
Amplitude Flatness ± 0.25 dB (over 24-MHz bandwidth)
Output Connector F-Female, 75 Ω
ISDB-T and ISDB-Tb/RF Output
Frequency Range 470 MHz to 764 MHz
Bandwidth 6 MHz
RF Channel Count 2
RF Level Adjustment Range 38 dBmV to 53 dBmV
Spurious > 60 dBc
Frequency Accuracy +- 100Hz
Amplitude Flatness +- 0.25 dB (over 12 MHz bandwidth)
Output Connector F-female, 75 Ω
IP Output (Optional)
Connection RJ45, GbE, Full Duplex, Auto-Neg
Addressing Unicast, Multicast
Transport Protocol RTP/UDP/IP, RTSP
Transport Format SPTS
Management
Connection RJ-45, GbE, Full Duplex, Auto-Neg
Protocols HTTP
User Interface Web Browser
Browser Support IE9 or later, Firefox, and Chrome
EAS Inputs
Video CVBS (RCA)
Audio Stereo (RCA)
Trigger Terminals
Internal AC Power Supply
Line Voltage 93 VAC to 254 VAC, 47 Hz to 63 Hz
Power Consumption up to 130 Watts
External DC Power Backup
Voltage + 12 VDC ± 5 % VAC
Current < 10 Amps
General
Operating Temperature 0 °C to 50 °C
Dimensions 19″(L) x 16″(D) x 1.75″(H)
Certifications

Dolby® Digital Stereo Creator

NOTES:
1. MPEG-2 supports 25/29.97/30
2. The PD1 000 platform requires one OM4/0MI/OMI-Tb output module and one to four encoder modules. One additional OMI/OMI-Tb is also supported in the chassis

Ordering Information Description
PD1000 Universal Digital Platform Chassis(1)
EM-2HD MPEG-2 or H.264 Dual HD Encoder Module for PD1000 (Cables Included)
EM-2HD-SA MPEG-2 or H.264 Dual HD Encoder Module for PD1000 (Stand Alone)
EM-2HD/D MPEG-2 or H.264 Dual HD Encoder Module for PD1000 with Dolby Audio Encoding (Cables Included)
EM-2HD/D-SA MPEG-2 or H.264 Dual HD Encoder Module for PD1000 with Dolby Audio Encoding (Stand Alone)
EM-HD-SDI HD-SDI Dual Encoder Module for PD1000, Includes Dolby
EM-HD-SDI-SA HD-SDI Dual Encoder Module for PD1000, Includes Dolby (Stand Alone)
OM4 QAM Output Module for PD1000
OM4-SA QAM Output Module for PD1000(Stand Alone)
OM4-IP IP Output Option for OM4
OMI ISDB-T Output Module for PD1000 (Japan)
OMI-SA ISDB-T Output Module for PD1000 (Japan, Stand Alone)
OMI-Tb ISDB-Tb Output Module for PD1000 (Latin America)
OMI-IP IP Output Option for OMI & OMI-Tb
EAS-HAR EAS Adapter Cable, 3.5 mm to Composite
X-PS External Redundant Power Supply

NOTE:

(1) The PD1000 platform requires one OM4/OMI/OMI-Tb output module & one to four encoder modules. One additional
OMI/OMI-Tb is also supported in the chassis.
