GigaWave Opti-HUB

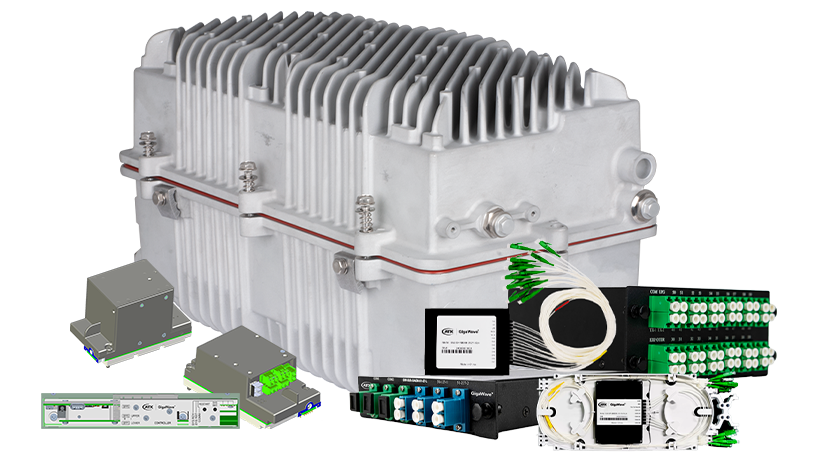

GigaWave Opti-HUB - External housing and modular components

The GigaWave® Opti-HUB is a modular, environmentally hardened optical signal management and distribution platform designed to support the next-generation needs of MSOs transitioning to Distributed Access (DAA) or Fiber to the Home (FTTH) Architectures. As the successor to Cisco’s GS7000 Optical Hub, GigaWave Opti-HUB introduces enhanced optical amplification, switching, and passive management capabilities—all within a compact, node-sized form factor.

Optimized to help operators consolidate physical hub sites, extend signal reach, and cost-effectively deliver high-speed broadband to unserved and underserved communities, the GigaWave Opti-HUB sets a new standard for field-deployable optical infrastructure.

Platform Highlights

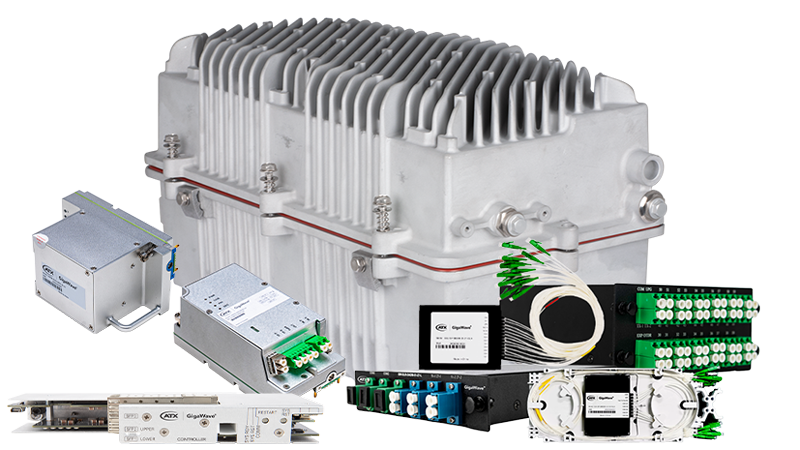

GigaWave Opti-HUB - External housing and modular components

Overview

The GigaWave® Opti-HUB is a field hardened platform based on the ATX GigaXtend® GS7 1.8GHz Optical Node. Instead of supporting an RF amplifier module in the base, the GigaWave Opti-HUB has no RF circuitry and is entirely based on digital…

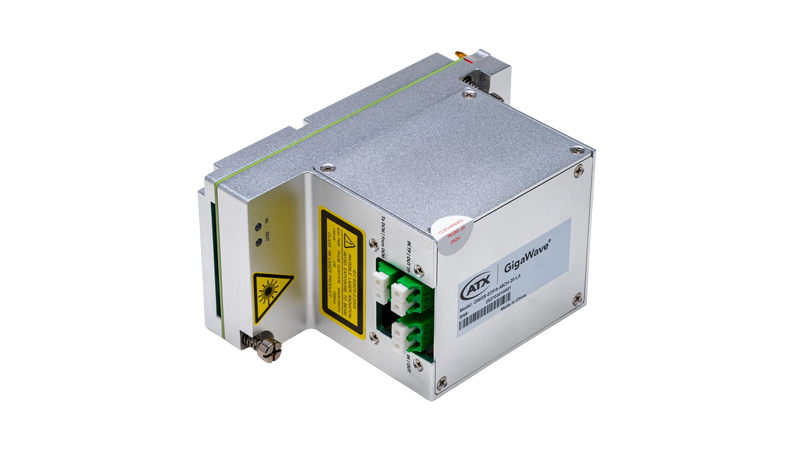

GigaWave Opti-HUB - EDFA, C-Band Optical Amplifier (front right view)

EDFA, C-Band Optical Amplifier

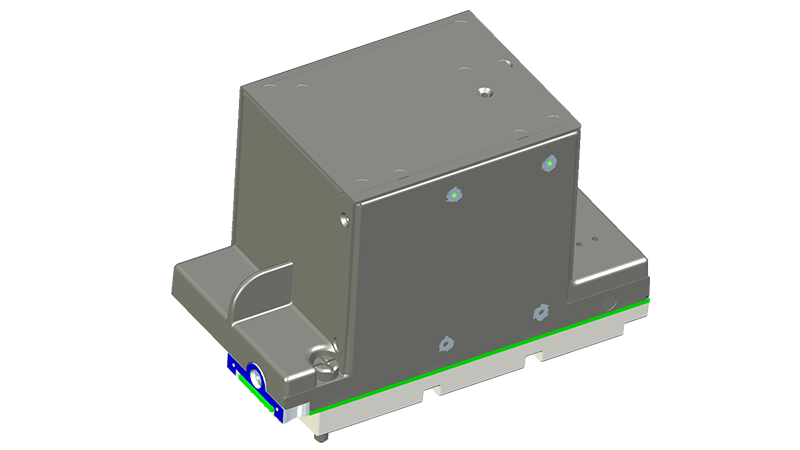

The GigaWave® Opti-HUB EDFA is a dual-stage Erbium-Doped Fiber Amplifier designed to increase network reach with up to +20dBm output power and variable gain up to 25dB. Up to four EDFAs can be installed in the optical hub lid alongside…

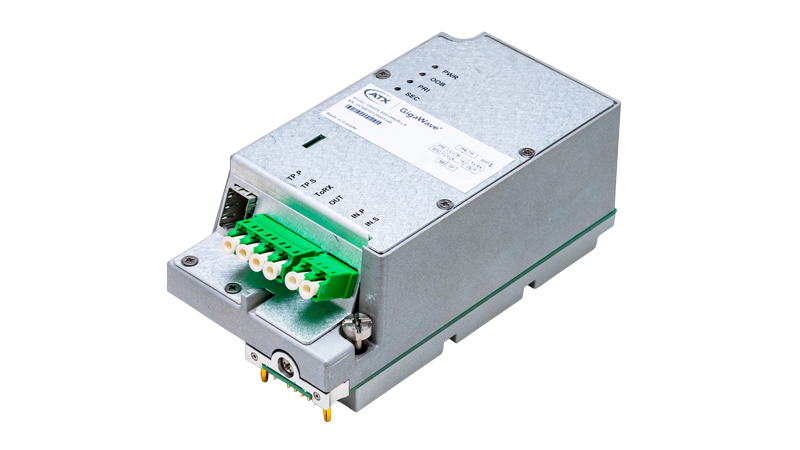

GigaWave Opti-HUB Switch (front right view)

Optical Switch

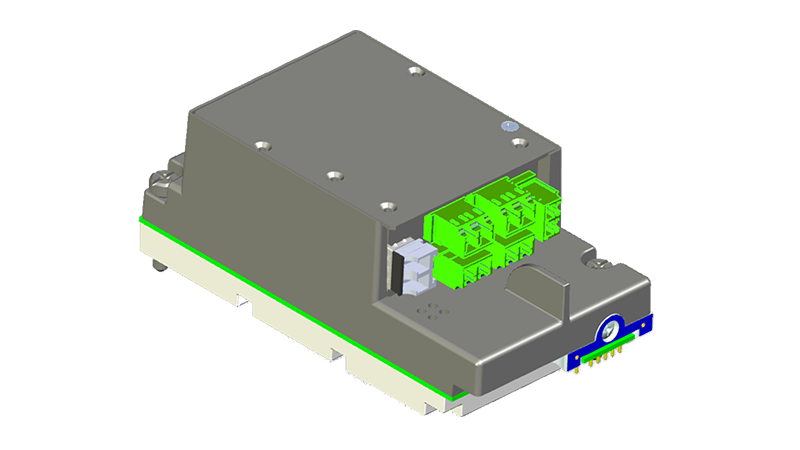

The GigaWave® Opti-HUB Optical Switch provides seamless optical path redundancy, ensuring service continuity during fiber cuts or signal degradation. Up to four switches can be installed in the hub base (space permitting).

Optical Passives

ATX’s GigaWave® portfolio includes a variety of Optical Passives to complement the company’s digital optical transport and amplifier solutions. These field-hardened, low-insertion loss filters are designed for use in indoor and outdoor environments and provide flexible options for multiwavelength applications.…
