GigaWave Digital Link Extender 40 (DLX40) Solution
The GigaWave® DLX is a next-generation digital optical gateway platform designed to provide cable operators with a powerful, futureproof and protocol-agnostic solution that enables them to expand the capacity of fiber access links between headends/hubs and outside plant facilities in a cost-effective and pay-as-you-grow manner. The aggregation platform integrates DWDM multiplexing, EDFA and optical switch functionality. When combined with the field-hardened and all-passive Digital Link Extender Receiver (DLR) unit, the pair form a platform that allows for the transmission of up to twenty optical links, redundantly across fiber distances of up to 60 km. The solution is ideal for use in areas where a legacy node serving area is converted into multiple Remote PHY (R-PHY)-based fiber deep nodes, which are fed via optical links via variety of data rates starting from 10Gbps to coherent 100Gbps. Support for PON transmission is also provided across the secondary links.
Benefits
- Supports Distributed Access Architecture (DAA) – Enables reliable and fiber-efficient Remote PHY (R-PHY)-based fiber deep node deployments
- Optimized Fiber Utilization – Transmit up to 20 US/DS 10 GigE optical links redundantly across two fibers
- Advanced Resiliency – Redundancy across varying fiber distances is supported automatically
- Passive Architecture – No actives required in the field results in increased reliability and decreased Opex (truck rolls/powering)
- Plug & Play – Simply dial in primary and redundant path lengths on initial set-up. Maintains constant gain regardless of wavelength count from 1:20 (per direction)
Features
DLX40
- High level of integration maximizes rack space density and lowers power consumption
- Optimized OSNR maintained in downstream (DS) and upstream (US)
- High dynamic range and sensitivity
- Fast optical switching time if fiber cut
- SNMP/WEB GUI support
- US/DS monitor ports and PON express ports
- Two DLX40 modules per redundantly powered 1RU chassis
- 1625nm OTDR insertion port optional at each output
DLR
- Integration of optical devices minimizes losses, improves uniformity and reliability
- Completely passive with wide temperature range
- Default packaging is three trays for a FOSC-C enclosure, but many options are available
- US/DS monitor ports and PON express ports
Solution: Distributed Access Architecture (DAA)
ATX designed the Gigawave Digital Link Extender (DLX), a next-generation digital optics platform, to enable cable operators to gracefully transition to a distributed architecture. A highly efficient and integrated solution, Gigawave DLX enables MSOs to dramatically expand the capacity of access links, migrate to a Remote-PHY/MAC architecture, push RF generation deep into the network and replace expensive hubs.
Resource Showcase
GigaWave Hubsite Collapse Solution Brief
Discover how ATX's digital optical transport solutions can reduce operational costs through the consolidation of physical hubsites
Download Solution BriefDefining an Optimal Approach to Cable Network Migration
Find out how ATX’s GigaWave platform can keep you on course to exploit the full potential of cable access architectures for years to come
Download White PaperWelcome to The Gigabit Generation
Understand why MSOs must adopt an Agile Network Model to achieve the flexibility required to meet future market demands and keep ahead of the competitive curve
Download White PaperDLX40
| CP-DLX40-V1R2 / CP-DLX40-V2R2 | ||||
| 10 GigE REMOTE PHY OPTICS | MIN | MAX | ||
|---|---|---|---|---|
|
OPERATING WAVELENGTH, DS |
ITU CH 37, 1547.72nm |
ITU CH 18, 1563.05nm |
||
|
OPERATING WAVELENGTH, US |
ITU CH 61, 1528.77nm |
ITU CH 42, 1543.73nm |
||
|
UNIFORMITY ACROSS ALL PORTS |
1 dB |
|||
|
BER (without FEC) |
10E-12 |
|||
|
DS EDFA OSNR |
30 dB(1) |
|||
|
UP EDFA OSNR |
25 dB(1) |
|||
|
FIBER DISTANCE |
5 km |
40 km (v1) / 60 km (v2) |
||
|
GAIN PER WAVELENGTH(2) |
DS |
-4 dB at 5 km |
+3 dB at 40 km, +5 dB at 60 km (v2 only) |
|
|
US |
-3 dB at 5 km |
+4 dB at 40 km, +6 dB at 60 km (v2 only) |
||
|
MONITOR PORTS |
DS(3) |
-21 dB |
-19 dB |
|
|
US (3) |
-21 dB |
-19 dB |
||
|
U-MON(4) |
-21 dB |
-19 dB |
||
|
OPTICAL POWER, DEVICE |
10 GigE DS TX LEVEL AT DLX40 OUTPUTS 1, 2 |
21 dBm Comp. |
||
|
10 GigE US RX LEVEL AT DLX40 OUTPUTS 1, 2 |
2.7 dBm Comp. |
|||
|
10 GigE US RX LEVEL AT DLX40 PAIR * PORTS |
-22 dBm/λ |
-7 dBm/λ |
||
|
OPTICAL POWER, SYSTEM |
ASSUMED SFP TRANSMIT RANGE |
-1 dBm/λ |
+3 dBm/λ |
|
|
ASSUMED SFP RECEIVE RANGE |
-22 dBm/λ |
-7 dBm/λ |
||
|
OTDR |
1620nm |
1670nm |
||
|
PON |
||||
|
GPON DS λ |
1480nm |
1500nm |
||
|
GPON US λ |
1290nm |
1330nm |
||
|
XGPON DS λ |
1575nm |
1580nm |
||
|
XGPON US λ |
1260nm |
1280nm |
||
|
GPON/XGPON DS AT GW-DLR PON PORT |
3 dBm/λ |
7 dBm/λ |
||
|
GPON/XGPON US AT DLX PON PORT |
0.5 dBm/λ |
5 dBm/λ |
||
|
OPTICAL SWITCH |
||||
|
DS OPTICAL POWER RANGE AT OUT |
-30 dBm |
+22 dBm |
||
|
US OPTICAL POWER RANGE AT OUT |
-40 dBm |
+10 dBm |
||
|
OPTICAL CROSSTALK |
>50 dB |
|||
|
ISOLATION |
>30 dB |
|||
|
SWITCHING TIME |
<25ms |
|||
|
TOTAL PROTECTION SWITCHING TIME |
<50msec based on delta from healthy to threshold of 3dB below US level |
|||
|
OPTICAL RETURN LOSS, OUT 1/OUT 2 |
>45 dB |
|||
|
ENVIRONMENTAL |
||||
|
OPERATING TEMPERATURE |
0°C to +50°C (+32°F to +122°F) |
|||
|
STORAGE TEMPERATURE |
-40°C to +65°C (-40°F to +149°F) |
|||
|
STORAGE RELATIVE HUMIDITY |
5-85% Non-condensing |
|||
|
PHYSICAL |
||||
|
PACKAGING |
1 Slot of DLX Chassis, 2 Slots per 1RU |
|||
|
WEIGHT (DLX40-V1 / DLX40-V2) |
4 lbs (1.8 kg) / 5 lbs (2.3 kg), DLX40 chassis with 2 PS ( AC or DC ) and one Comm module, one OCML per box |
|||
|
FRONT FEATURES |
20x 10 GigE DS Inputs, 20x 10 GigE US Outputs, 2x Outputs 2x WL MON DS, 2x WL MON UP, 2x OTDR Ports 1x US Monitor, 1x EXP/PON, 6x Status LEDs |
|||
|
OUTPUT PORT CONNECTORS x2 |
SC/APC |
|||
|
ALL OTHER PORTS |
LC/UPC |
|||
|
CERTIFICATIONS |
FCC Class A, CB (UL62368-1), RoHS |
|||
NOTES:
(1) DS OSNR with SFP OSNR of 35dB. US OSNR are de-rated by 0.5 dB due if optional OTDR ports present.
(2) ±1 dB, km based on Fiber Length Setting in software, gain increases 1 dB per 5 km step.
(3) With respect to levels at OUT1/2 ports.
(4) With respect to internal UP EDFA output. Intended for OSNR measurements.
DLX Chassis
| CP-DLX40-CHAS | |
| NUMBER OF DLX SLOTS | 2 |
| NUMBER OF POWER SUPPLY SLOTS | 2 |
| NUMBER OF COMMUNICATION MODULE SLOTS | 1 |
| PHYSICAL | |
|---|---|
| DIMENSIONS | 1.75”H x 19.0”W x 23.0”D (4.45H x 48.26W x 58.4D cm) |
| WEIGHT | 6.3 lbs (2.9 kg) |
| CERTIFICATIONS | FCC Class A, CB (UL62368-1), RoHS |

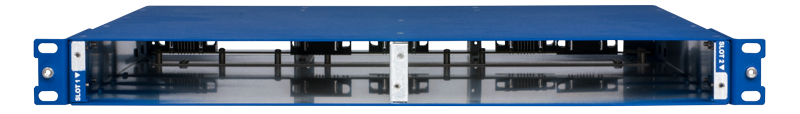

DLX Chassis (front view)

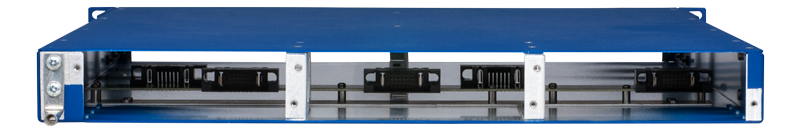

DLX Chassis (rear view)

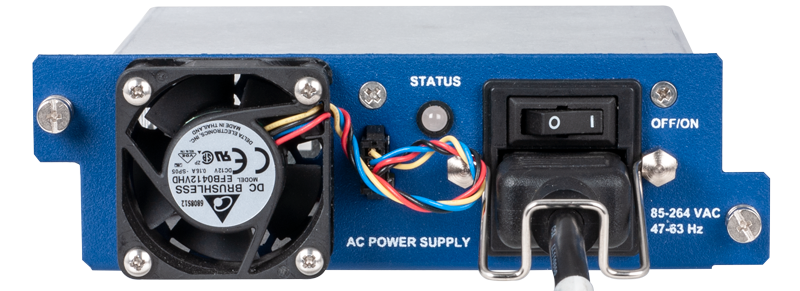

DLX Power Supply
| DC SUPPLY (CP-DLX40-PS-DC) | ||
| MIN | MAX | |
|---|---|---|
| OPERATING DC VOLTAGE | -56 VDC | -42 VDC |
| POWER CONSUMPTION (No Load) | 8W | |
| TOTAL LOAD | 50W | |
| ENVIRONMENTAL | ||
| OPERATING TEMPERATURE | 0°C to +50°C (+32°F to +122°F) | |
| STORAGE TEMPERATURE | -40°C to +65°C (-40°F to +149°F) | |
| STORAGE RELATIVE HUMIDITY | 5-95% Non-condensing | |
| PHYSICAL | ||
| DIMENSIONS | 1.7”H x 5.5”W x 5.6”D (4.3H x 14.0W x 14.2D cm) | |
| WEIGHT | 1.3 lbs (0.6 kg) | |
| CERTIFICATIONS | FCC Class A, CB (UL62368-1), RoHS | |

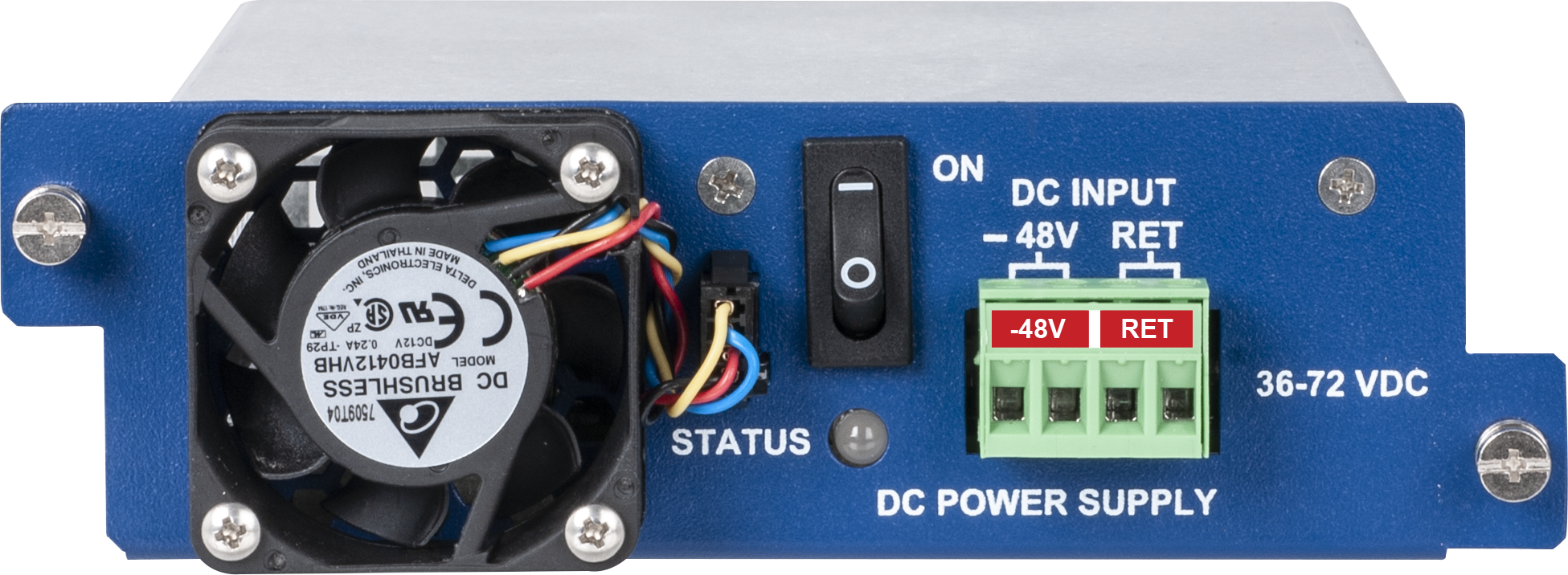

DLX DC Power Supply (front view)
DLX Communication Module
| CP-DLX40-COMM | |
| POWER CONSUMPTION | 1.25W |
| ENVIRONMENTAL | |
|---|---|
| OPERATING TEMPERATURE | 0°C to +50°C (+32°F to +122°F) |
| STORAGE TEMPERATURE | -40°C to +65°C (-40°F to +149°F) |
| STORAGE RELATIVE HUMIDITY | 5-95% Non-condensing |
| PHYSICAL | |
| DIMENSIONS | 1.7”H x 6.2”W x 6.0”D (4.3H x 15.8W x 15.2D cm) |
| WEIGHT | 1.0 lbs (0.5 kg) |
| CERTIFICATIONS | FCC Class A, CB (UL62368-1), RoHS |

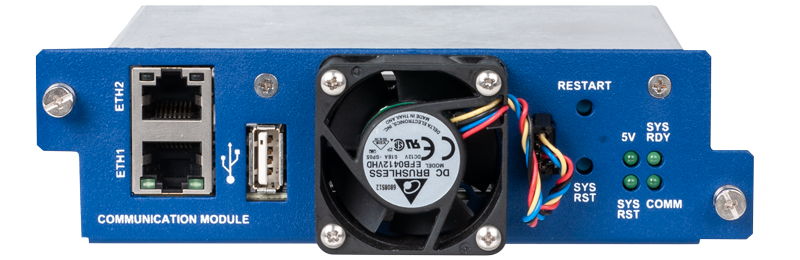

DLX Communication Module (front view)
Optical Multiplexer/Demultiplexer
|
|
HDM-20E-2MDM-NN9-F |
||||
|
OPTICAL |
MIN |
MAX |
|||
|---|---|---|---|---|---|
|
10 GigE REMOTE PHY PORTS |
OPERATING WAVELENGTH (ITU 18-37 & 42-61) |
1528nm to 1563nm |
|||
|
PASSBAND AT -0.5 dB |
λn ± 0.12nm |
||||
|
INSERTION LOSS – IN TO INTENDED PAIR PORT |
6.5 dB (Typ), 7.2 dB (Max) |
||||
|
RACK MOUNTINSERTION LOSS – IN TO INTENDED PAIR |
6.7 dB (Typ), 7.4 dB (Max) |
||||
|
INSERTION LOSS – IN TO DS MON |
20 dB |
22 dB |
|||
|
INSERTION LOSS – PAIR TO US MON |
20 dB |
22 dB |
|||
|
RIPPLE (With Each DWDM Passband) |
< 0.5 dB |
||||
|
ADJACENT CHANNEL ISOLATION |
25 dB |
||||
|
NON-ADJACENT CHANNEL ISOLATION |
40 dB |
||||
|
UNIFORMITY ACROSS ALL PORTS |
<1 dB |
||||
|
EXPRESS PORT |
OPERATING WAVELENGTH – BAND 1 |
1260nm to 1520nm |
|||
|
OPERATING WAVELENGTH – BAND 2 |
1570nm to 1660nm |
||||
|
INSERTION LOSS – IN* TO EXPRESS PORT |
<4.5 dB |
||||
|
RACK MOUNT INSERTION LOSS – IN* TO EXPRESS PORT |
<4.7 dB |
||||
|
ISOLATION – C-BAND SIGNAL TO EXPRESS |
>25 dB |
||||
|
ALL PORTS |
OPTICAL RETURN LOSS |
>45 dB |
|||
|
RACK MOUNT OPTICAL RETURN LOSS |
>55 dB |
||||
|
DIRECTIVITY |
>45 dB |
||||
|
ENVIRONMENTAL |
|||||
|
OPERATING TEMPERATURE |
-40°C to +85°C (-40°F to +185°F) |
||||
|
STORAGE TEMPERATURE |
-40°C to +85°C (-40°F to +185°F) |
||||
|
STORAGE RELATIVE HUMIDITY |
5-95% Non-condensing |
||||
|
OPTICAL POWER HANDLING |
300mW |
||||
|
MECHANICAL |
|||||
|
FOSC-C TRAY PACKAGING |
Three FOSC C-size single-width fiber splice trays. One tray has optics module cassette while the other two have 24 fiber splice inserts |
||||
|
RACK MOUNT DIMENSIONS |
1.72”H x 19.0”W x 9.00”D (4.37H x 48.26W x 22.9D cm) |
||||
|
FIBER TYPE |
G.657.A1 Bend Insensitive 250um Fibers |
||||
|
FIBER LENGTH |
2 ± 0.1m (This results in ~30mm between trays ~1.97m in each splice tray loop) |
||||
|
US & DS MON PORT CONNECTORS |
SC/APC |
||||
|
ALL OTHER PORTS |
FOSC MDM |
Bare Fiber Pigtails (See Color Code Below) |
|||
|
RACK MOUNT |
SC/APC |
||||
|
RELIABILITY |
GR-1221-CORE |
||||
Fiber Color Coding (Standard TIA/EIA-598-A Color Code) |
||||||
|---|---|---|---|---|---|---|
| Port Name | Fiber Color | Buffer Transfer Tube Color | Port Name | Fiber Color | Buffer Transfer Tube Color | |
| DS ITU18 |
BLU |
DS ITU30 |
BLU |
|||
| US ITU42 |
ORG |
US ITU54 |
ORG |
|||
| DS ITU19 |
GRN |
DS ITU31 |
GRN |
|||
| US ITU43 |
BRN |
US ITU55 |
BRN |
|||
| DS ITU20 |
SLT |
DS ITU32 |
SLT |
|||
| US ITU44 |
WHT |
US ITU56 |
WHT |
|||
| DS ITU21 |
RED |
DS ITU33 |
RED |
|||
| US ITU45 |
BLK |
US ITU57 |
BLK |
|||
| DS ITU22 |
YEL |
DS ITU34 |
YEL |
|||
| US ITU46 |
VIO |
US ITU58 |
VIO |
|||
| DS ITU23 |
ROS |
DS ITU35 |
ROS |
|||
| US ITU47 |
AQU |
US ITU59 |
AQU |
|||
| DS ITU24 |
BLU |
DS ITU36 |
BLU |
|||
| US ITU48 |
ORG |
US ITU60 |
ORG |
|||
| DS ITU25 |
GRN |
DS ITU37 |
GRN |
|||
| US ITU49 |
BRN |
US ITU61 |
BRN |
|||
| DS ITU26 |
SLT |
|||||
| US ITU50 |
WHT |
Primary |
BLU |
|||
| DS ITU27 |
RED |
Secondary |
ORG |
|||
| US ITU51 |
BLK |
Express Port |
GRN |
|||
| DS ITU28 |
YEL |
Downstream Test |
BRN |
|||
| US ITU52 |
VIO |
Upstream Test |
SLT |
|||
| DS ITU29 |
ROS |
|||||
| US ITU53 |
AQU |
|||||
FOSC-450C TRAY(stacked view)
FOSC-450C TRAY (front view)
Rack Mount DLR(front view)
| PART NUMBER | DESCRIPTION |
|---|---|
|
CP-DLX40-V1R2 |
DLX40 v1 module (up to 2 per chassis). 40x 100G spaced C-Band ITU, PON Express Port, 40 km Redundant Path and 1625nm OTDR port |
|
CP-DLX40-V2R2 |
DLX40 v2 module (up to 2 per chassis). 40x 100G spaced C-Band ITU, PON Express Port, 60 km Redundant Path and 1625nm OTDR port |
|
CP-DLX40-CHAS |
1RU Chassis with 2 DLX module slots |
|
CP-DLX40-PS-DC |
-48 VDC Power Supply (up to 2 per chassis) |
|
CP-DLX40-COMM |
Communication Module (always use 1 per chassis) |
|
CP-DLX40-KTCHDC |
Digital Link Extender Base Kit, includes 2x DC Power Supplies, 1x Chassis, 1x Communication Module. No DLX or DLR included |
|
CP-DLX40-BLANK10 |
10-pc Blank Panel Kit for Unused Slots in DLX-CHAS |
|
CP-DLX40-FAN |
Replacement 4-wire Fan Assembly for DLX Platform |
|
HHDM-20E-2MDM-NN9-F |
Digital Link Extender Remote Field-hardened Passive Module, 40x 100G spaced C-Band ITU, PON Express Port, 250um pigtails, 3x FOSC-450C size splicing trays |
|
RM-20E-2MDM-SC |
DLR Rack Mount Field-hardened Passive Module, 40x 100G Spaced C-Band ITU, Redundant Launch Ports, PON Express Port, LC/UPC, 2x SC/APC Launch Ports |
