Chassis & Power Supplies

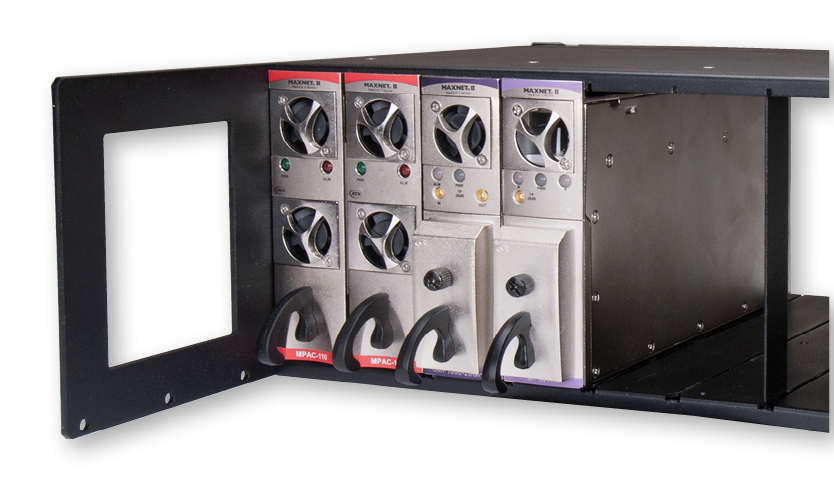

MAXNET II is offered in a compact 3RU chassis (passive and active versions available) along with compact 1RU passive chassis. Modules push and lock into the chassis so no mounting hardware is necessary. Choose from an assortment of cable management selections including trays, bars and cable management systems. Hot-swappable power supplies are available in both AC and 48V powering versions.


  • Fully integrated, ultra-dense, modular-based, MCX connector-based RF/optical signal management platform
  • DOCSIS® 3.1 and CCAP™ compliant
  • Passive 3RU chassis can accommodate up to 24 single-width passive modules or 12 dual-width passive modules – easily upgradeable to active chassis
  • Active 3RU chassis can accommodate both active and passive modules up to 24 single-width passive modules or 12 dual-width modules
  • Passive 1RU chassis can accommodate up to 6 single-width passive modules or 3 dual-width passive modules
  • Reverse mount 3RU option available
  • Newest 3RU active chassis holds standard MAXNET II power supplies and up to 20 ultra-dense active modules including active combiners and narrowcast amplifiers
  • Chassis can be powered from 110 VAC, 220 VAC or -48 VDC plug-in power supply modules or remotely via the rear access 24 VDC A&B (redundant) terminal block
  • Active chassis is provisioned to accommodate set-up, monitoring and control for modules and chassis over the network (HMS compliant (SNMP v2c)) or through a web browser; email alarm notification is also supported
  • Hot-swappable power supply modules offered in 120, 220 VAC or -48 VDC input with redundancy capabilities when 2 power supplies are engaged into the active chassis
  • Power supply 24V rear terminal block output accommodates remote powering options
  • Front power supply LEDs indicate 24V power and power supply status
  • Power supply modules require an active chassis and occupy 2 slots
